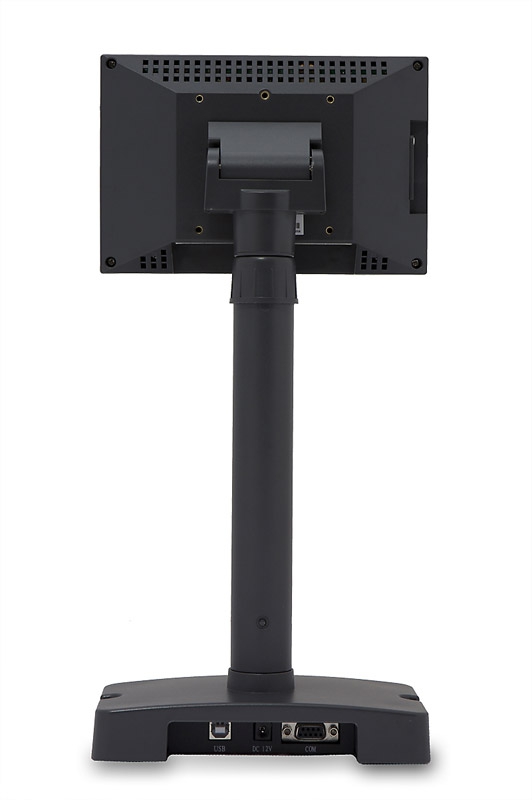

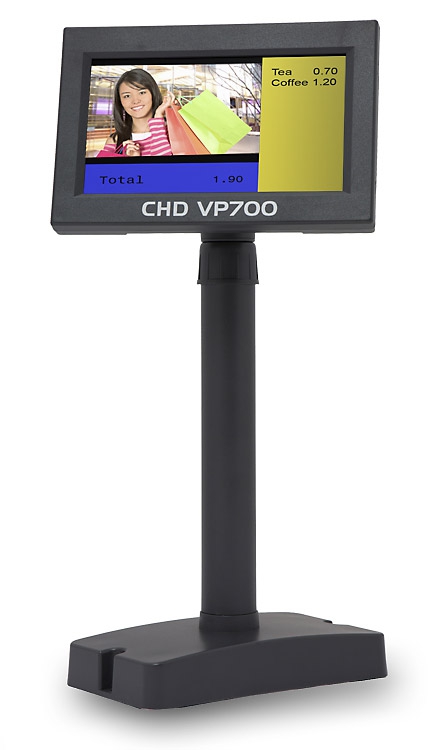

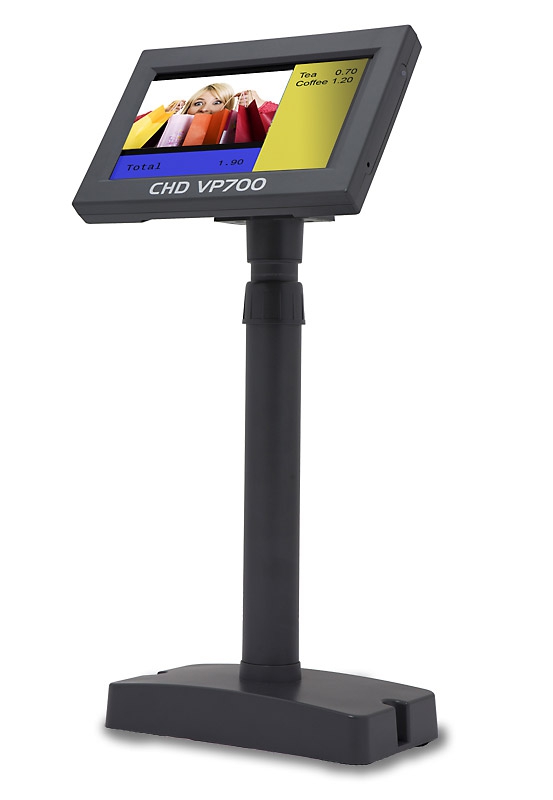

CHD VP700

Display

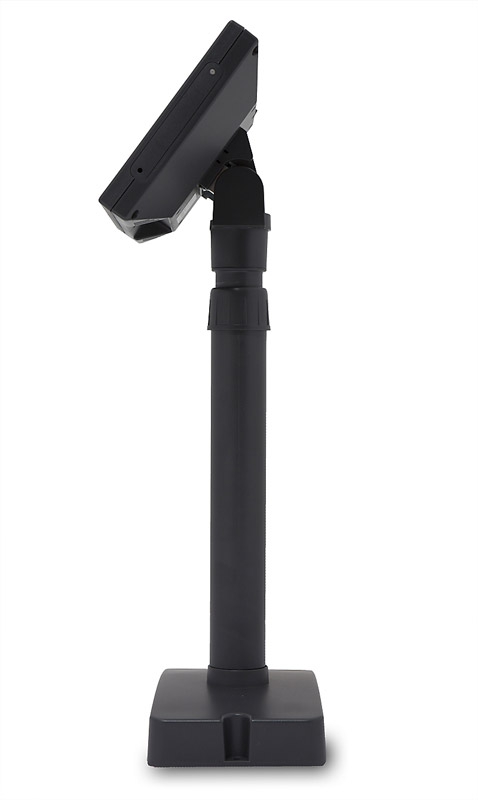

The attractive customer display can be set to the desired height and angle. Insert an SD memory card with stored JEPG image files into the display for slideshow view to display ads while the customer is served.

Physical parameters
Display LCD
Dimensions 7 inches (diagonal)
Active area 154.08 (W) x 86.58 (H) mm
Resolution 480 x 234
Brigthness 280 cd / m2
Display type a-SI TFT active matrix
Advertising photo format JPEG, 72dpi, 300x200px max
Interface USB 2.0, RS232 x 1
Memory SD memory card (2Gb max)
Power adaptor, 12 VDC 1.5 A
Operating temperature 0°C to +42°C
Storage temperature -25°C to +70°C
Humidity RH 10% - 85%, non-condensing
Instalation requirement Indoors
Case Plastic
Case colour Black
