CHD 6800WP

10.1" True All In One POS Performance System - Windows

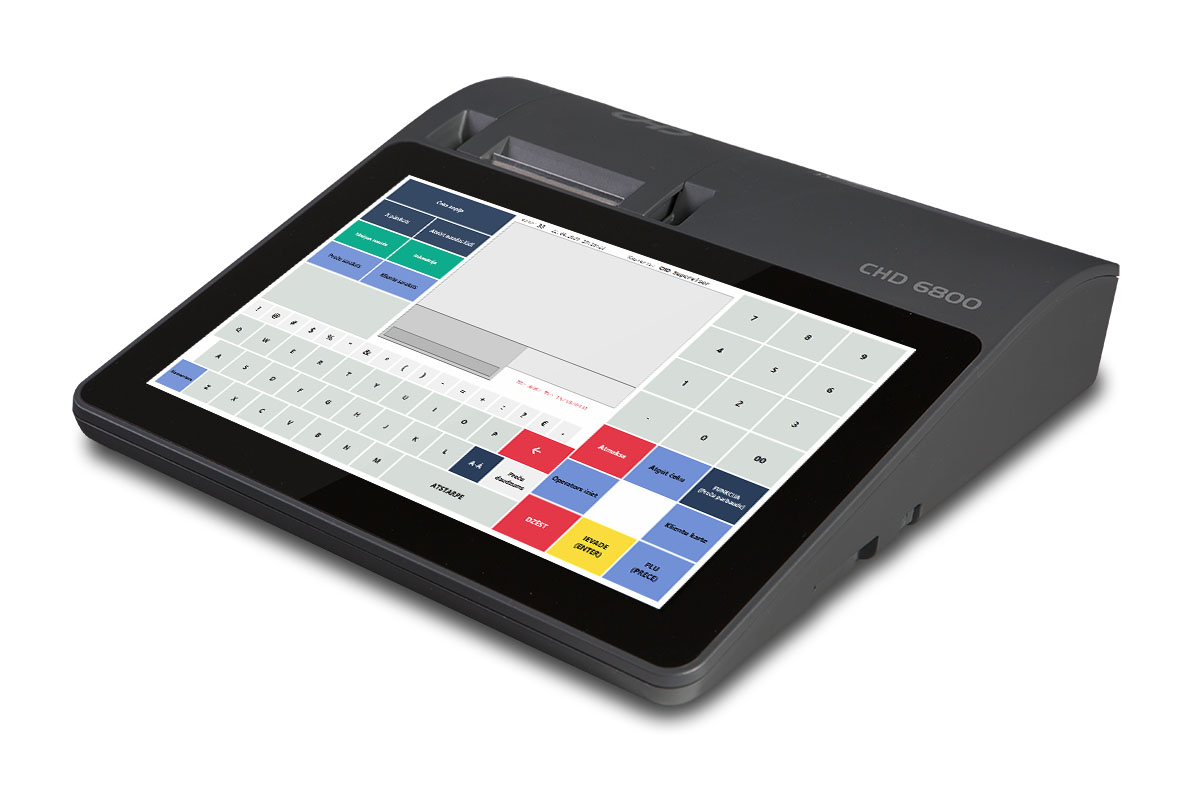

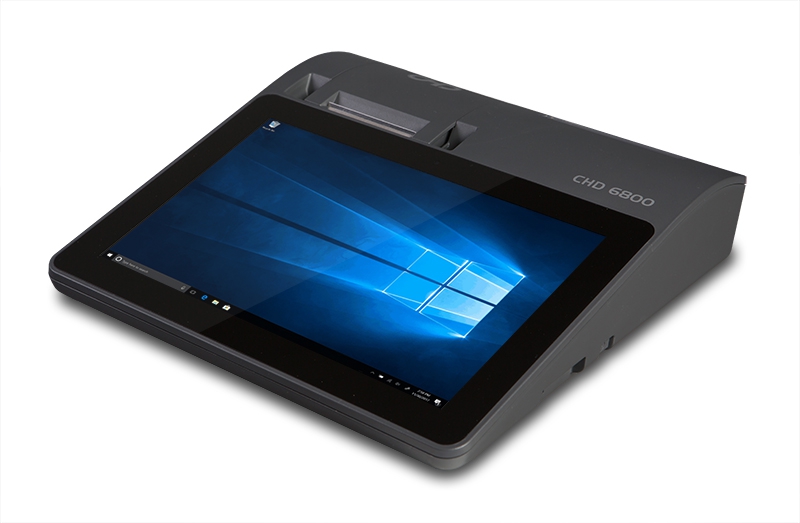

A Truly All In One Design
CHD 6800W combines a high-performance CPU, reliable 58mm thermal printer and a customer screen into one housing. The all-in-one design unclutters retailers’ working space, while maintaining a fully functional sales point.
Sleek and compact design with small footprint allows CHD 6800W to blend seamlessly into any store environment. Retailers have more space at the checkout to display high margin merchandise, engage with the customers or for other value-adding activities.


Performance And Reliability
A choice between different CPUs allows retailers to select the right performance for their needs. Top-notch engineering combined with retail hardened hardware and components ensures that retailers can rely on the CHD 6800W, even with 24/7 operations. CHD 6800W is surprisingly easy to use without compromising on the performance.


On The Go
Mobility is a key factor for many retailers. A long-lasting battery, small size and wireless connectivity, including the optional 4G/LTE module, allows the POS system to be freely moved around as needed. Exchange of vital data on the go, wireless back-up, open air and outdoors operations – CHD 6800W can be used in almost any sales environment!



Reliable hardware:

  • Retail hardened hardware
  • Automotive grade components
  • Life expectancy: 7+ years
  • Designed for 24/7 operations

Crystal clear operator display:

  • 10" P-CAP screen
  • Daylight readable

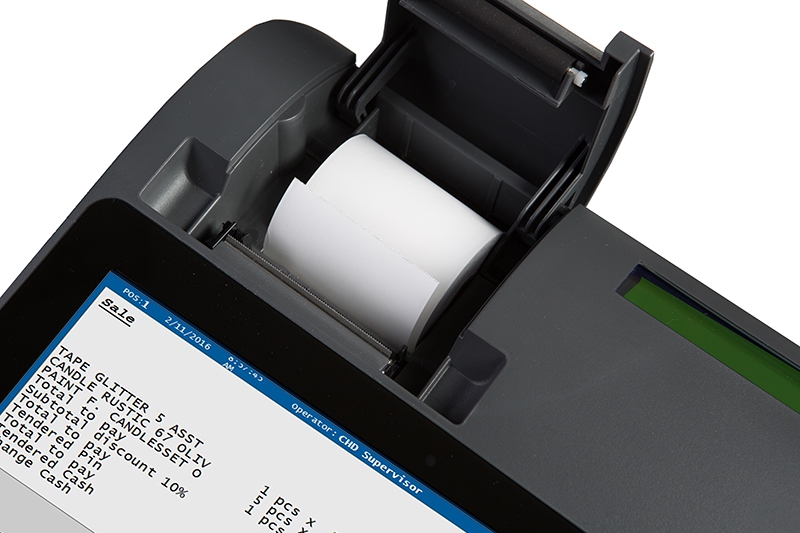

58 mm thermal printer:

  • Print speed: up to 100 mm/s
  • Easy paper roll change
System
Processor Intel® Pentium® N4200
OS Microsoft Windows 10 Enterprise 2016 LTSB
RAM 4GB (8GB max), 2 memory slots
Storage 64 GB SSD M.2 2242 socket
miniPCIe slots 2x
Wi Fi 802.11 a/b/g/n Realtek® RLT8821AF
Bluetooth 4.0
Graphics chipset Intel® HD graphics 505
Physical parameters

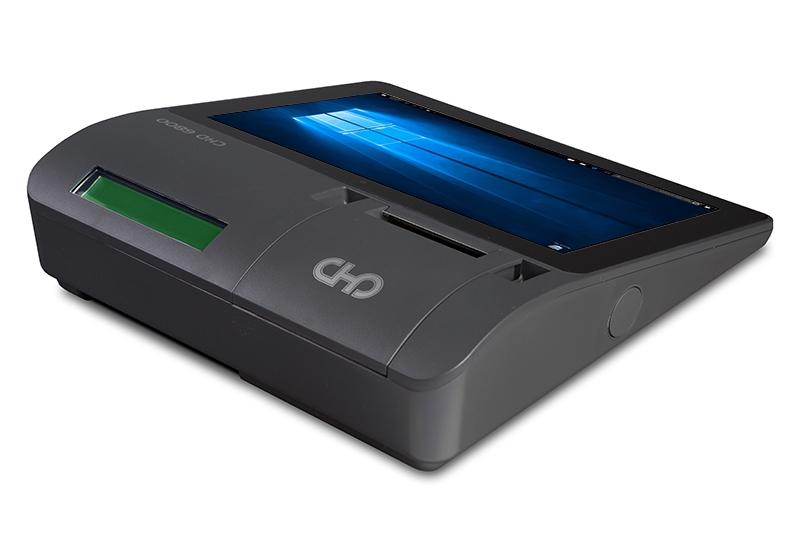

Customer display LCD 240x48 px
USB ports 4x (2x Back + 2x Side) USB 3.0 HOST type A-sockets, 3x USB 2.0 inside
RS-232 ports 2x with +5V power supply at back panel, 1x inside
HDMI 1x
Cash drawer port 1x RJ11, 9V
SD slot
LAN Gigabit Ethernet, Intel® I210-AT
WWAN / 4G Optional 1x SimCard slot
Audio Line in/out
VESA mount Standard VESA 100
Battery Optional, Li-Ion 7,2V/5800 mAh
Fiscal memory
Weight 2.6 kg
Dimensions 270 (W) x 270 (L) x 80 (H) mm
Housing Metal + plastic
Display
Size IPS 10.1" 1280 x 800 Landscape
Type Capacitive, multitouch, 10 points
Display design True Flat
Printer
Printing method Thermal
Printera platums 58 mm
Printer mechanism SII CAPD 245
Printer pulse activations 100 million or more
Abrasion resistance 50 or more
Auto cutter
Print speed 100 mm/s max.
Printer head life 500,000 or more
Paper roll change method Easy-load
Options
i-button Optional
